Key Takeaways
- The ASUS ROG Matrix RTX 5090 is a limited-edition (1,000 units) 30th-anniversary GPU, pushing the RTX 5090’s power limit to an unprecedented 800W.
- It achieves 800W via a dual-input system: a standard 12V-2×6 connector and an ASUS proprietary BTF (Back-To-the-Future) connector, requiring a compatible BTF motherboard for full power.
- Advanced air cooling includes a full-copper vapor chamber, liquid metal TIM, a thick 3oz copper PCB, and an innovative four-fan design (three front, one rear exhaust).
- ASUS integrates extensive safety features like Power Detector+ and a Memory Defroster for extreme LN2 overclocking, directly addressing community concerns about high-wattage reliability.
Introduction: The 30th Anniversary Powerhouse
Commemorating three decades of graphics card innovation, ASUS has unveiled the ROG Matrix GeForce RTX 5090 30th Anniversary Limited Edition. This isn’t just another high-end GPU; it’s a statement—a meticulously engineered, ultra-exclusive card designed to push the boundaries of performance and power. Limited to just 1,000 units worldwide, the Matrix RTX 5090 redefines what’s possible with an air-cooled graphics card, boasting an astonishing 800W power draw and a suite of advanced features tailored for extreme enthusiasts and overclockers. Join us as we deconstruct this engineering marvel, exploring its groundbreaking power delivery, innovative cooling solutions, and the robust design choices that make it a true flagship.
The 800W Powerhouse: Unpacking Its Unprecedented Demands
At the heart of the ROG Matrix RTX 5090’s extreme performance lies its formidable 800W power capability. This is a significant leap, far exceeding the typical 575W power limit of standard RTX 5090 models and even surpassing most other custom designs by 200W or more. Such immense power is not merely for show; it facilitates a factory overclocked boost clock of 2,730 MHz in its dedicated 800W mode, promising up to a 10% performance increase over a standard RTX 5090. To manage this colossal energy demand, ASUS has implemented a sophisticated dual-input power delivery system, a critical innovation we’ll explore in detail.
ASUS ROG Matrix RTX 5090 vs. Standard & Astral RTX 5090
| Feature | ROG Matrix RTX 5090 | Standard RTX 5090 (Reference) | ROG Astral RTX 5090 |
|---|---|---|---|
| Max Power Draw | 800W (with BTF) | 575-600W | 600W |
| Power Connectors | 1x 12V-2×6 + 1x BTF GC-HPWR | 1x 12V-2×6 | 1x 12V-2×6 |
| Boost Clock (OC Mode) | 2730 MHz (800W mode) | ~2407 MHz | 2580 MHz |
| Cooling Solution | Advanced Air (Vapor Chamber, Liquid Metal, 4-Fan) | Standard Air | Advanced Air/Liquid Options |
| Memory Defroster | Yes (for LN2) | No | Yes (for LN2) |
| PCB Copper Layer | 3oz Copper | Standard | Standard |
Dual-Input Dominance: The BTF & 12V-2×6 Synergy
The ROG Matrix RTX 5090’s ability to draw 800W stems from its innovative dual-input power system. It features a standard 16-pin 12V-2×6 connector on its spine, capable of delivering up to 600W. Crucially, it also includes an additional, detachable GC-HPWR (BTF) connector on its bottom edge. When paired with a compatible ASUS BTF-specific motherboard (such as the ROG Crosshair X870E Hero BTF), this connector allows for direct power draw from the motherboard, enabling the card to fully utilize its 800W potential. This parallel power input is a sophisticated engineering solution designed to safely deliver the unprecedented wattage required for its factory-overclocked performance.
Cooling the Beast: Liquid Metal, Vapor Chambers & Quad-Fan Innovation

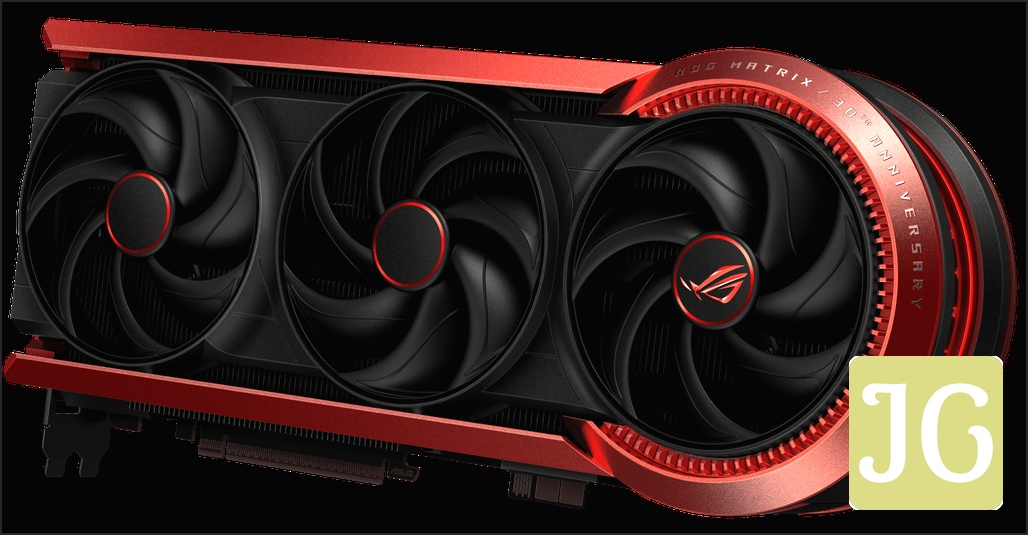

Managing 800W of heat generation within an air-cooled envelope demands extraordinary thermal engineering. The ROG Matrix RTX 5090 rises to this challenge with a multi-pronged cooling strategy. It employs a full-copper vapor chamber, a technique refined from past ROG designs, bonded directly to the GPU die with a proprietary liquid metal thermal interface material (TIM). ASUS confirms the safe application of liquid metal, allowing for vertical card mounting without issue. The cooler itself features an innovative four-fan design: three Axial-Tech fans on the front operate in a push configuration, complemented by a crucial fourth fan integrated into the backplate, operating in a pull configuration to exhaust hot air vertically over the densely packed heatsink fins. This dense fin stacking provides 10% more surface area than typical designs, collectively ensuring stable temperatures even under its immense 800W load. Furthermore, 0dB fan technology ensures silent operation during low-power states.
Built for Extremes: PCB, VRM, and Overclocking Features
Beyond its power delivery and cooling, the ROG Matrix RTX 5090 is engineered from the ground up for unparalleled stability and overclocking potential. Its printed circuit board (PCB) incorporates a thick three-ounce copper layer, a design choice from the legendary ROG Mars II, which significantly reduces voltage drop and improves thermal dissipation across high-load circuits. The card integrates extensive sensor arrays across its VRMs, memory, and power stages, providing users with detailed telemetry through the ASUS GPU Tweak III software. For the most ambitious liquid nitrogen (LN2) overclockers, the card brings back the jumper-activated Memory Defroster, first seen in the GTX 780 Ti Matrix, specifically engineered to maintain VRAM stability when cooled below freezing temperatures and prevent cold-related errors. GPU Tweak III further enhances the experience with features like sag detection, thermal mapping, and the aforementioned Power Detector+ utility, offering a comprehensive toolkit for fine-tuning and monitoring this extreme hardware.
ASUS ROG Matrix Platinum GeForce RTX 5090 30th Anniversary Limited Edition Key Specifications
- Graphics Engine
- NVIDIA GeForce RTX 5090
- CUDA Cores
- 21,760
- AI Performance
- 3593 TOPs
- Video Memory
- 32GB GDDR7
- Memory Interface
- 512-bit
- Memory Speed
- 28 Gbps
- Engine Clock (OC Mode)
- 2610 MHz
- Engine Clock (Default Boost)
- 2580 MHz
- Engine Clock (800W Mode)
- 2730 MHz
- PCI Express
- 5.0
- OpenGL
- 4.6
- Digital Max Resolution
- 7680 x 4320
- Display Outputs
- 2x Native HDMI 2.1b, 3x Native DisplayPort 2.1b
- Max Displays
- 4
- HDCP Support
- 2.3
- NVLink/Crossfire
- No
- Physical Dimensions
- 357.6 x 149.3 x 76 mm (14.1 x 5.9 x 3 inches)
- Slot Occupation
- 3.8 Slots
- AURA SYNC
- ARGB
- Recommended PSU
- 1000W
- Power Connectors
- 1x 16-pin (12V-2×6) + GC-HPWR (BTF)
- Accessories
- Speedsetup Manual, ROG Graphics Card Holder, ROG Velcro Hook & Loop, ROG Magnet, ROG Graphics Card Keycap, ROG PCB Ruler, Thank You Card, 1-to-4 Adapter Cable
- Software Included
- ASUS GPU Tweak III, MuseTree, NVIDIA Game Ready & Studio Drivers
Matrix Legacy: A Nod to ASUS’s 30 Years of GPU Innovation
The ROG Matrix RTX 5090 is more than just a performance leader; it’s a celebration of ASUS’s 30-year journey in graphics card development, which began with their first GPU release, the ASUS 375, in 1996. Its distinctive aesthetic, characterized by a striking red and black color scheme, angular radiator design, and a unique circular frame at its far end, pays homage to past Matrix-class GPUs like the 2008 EN9800GT Matrix and the RTX 2080 Ti Matrix. The prominent Infinity Mirror effect, a trademark from the RTX 2080 Ti Matrix, is also reintroduced, blending retro design cues with cutting-edge technology. This limited-edition card embodies ASUS’s commitment to pushing boundaries, drawing upon decades of engineering expertise to create a true collector’s item.
Availability & Pricing: The Ultra-Exclusive Factor

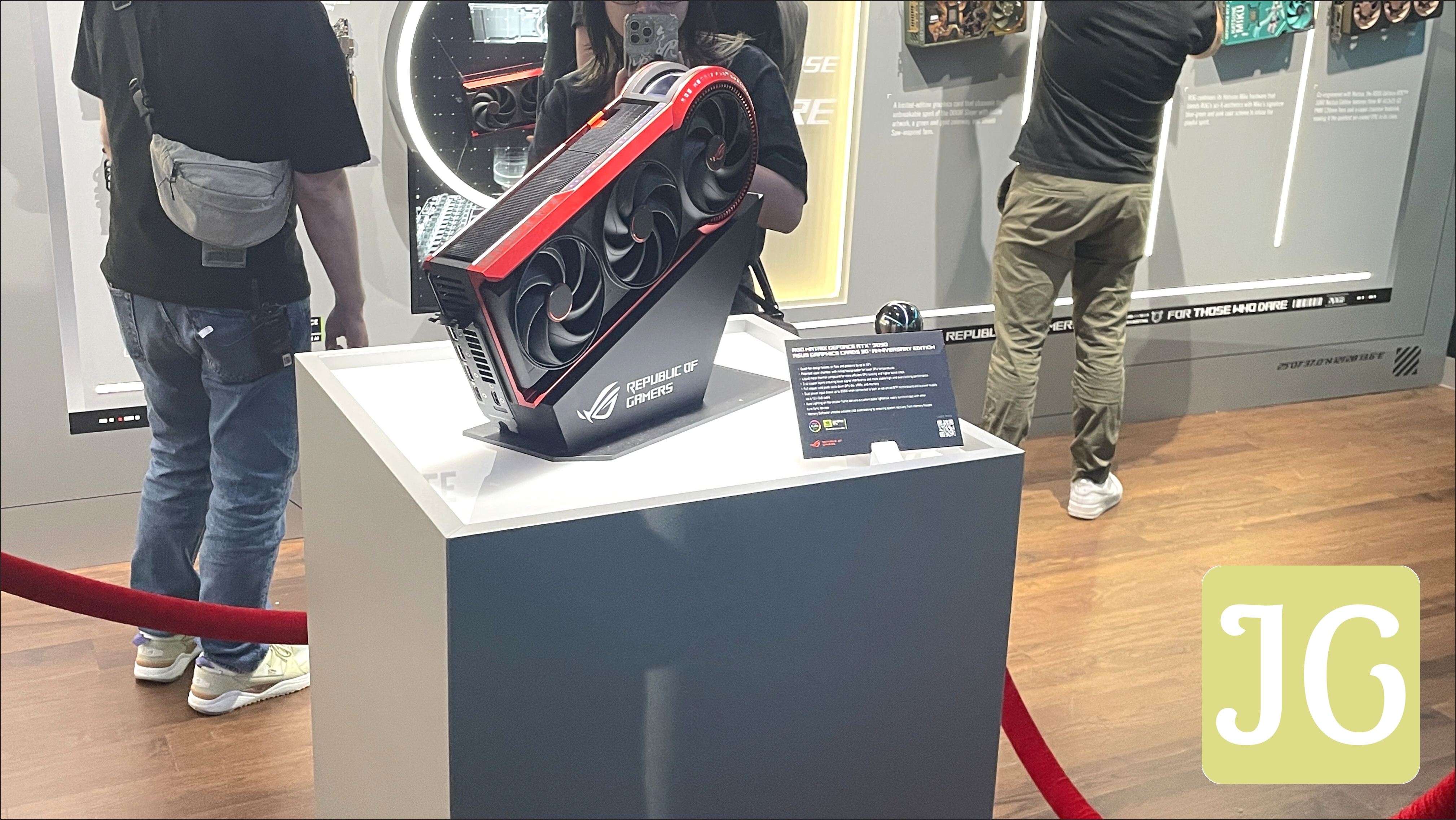

As a 30th-anniversary commemorative product, the ROG Matrix RTX 5090 is designed for exclusivity. Production is strictly limited to only 1,000 units globally, making it a highly sought-after collector’s item. While it was unveiled at Gamescom 2025, ASUS has not yet disclosed official pricing or specific retail availability details. However, industry analysts anticipate its cost to be substantially higher than a standard RTX 5090, likely exceeding $2500, reflecting its premium, limited-edition status and extreme performance capabilities. Enthusiasts do have opportunities to win one through ASUS’s ‘Cheers to 30 Years’ giveaway event, which includes bonus missions centered on the card.
ROG Matrix RTX 5090: The Ultimate Verdict at a Glance
Pros
- Unprecedented 800W power limit for an air-cooled GPU, enabling highest clock speeds.
- Up to 10% performance increase over standard RTX 5090 models.
- Innovative dual-input power delivery (12V-2×6 + BTF) for enhanced stability.
- State-of-the-art cooling: full-copper vapor chamber, liquid metal TIM, quad-fan design, 3oz copper PCB.
- Advanced overclocking features like Memory Defroster for LN2 cooling.
- Extensive safety and monitoring with Power Detector+ and GPU Tweak III telemetry.
- Exclusive, limited-edition (1,000 units) design with rich ASUS ROG heritage.
Cons
- Requires a compatible ASUS BTF motherboard to unlock full 800W potential.
- Expected to be significantly more expensive than standard RTX 5090s.
- Limited availability (1,000 units) makes it difficult to acquire.
- Requires a high-wattage PSU (recommended 1000W) for optimal performance.
Frequently Asked Questions About the ROG Matrix RTX 5090
What is the maximum power draw of the ROG Matrix RTX 5090?
The ROG Matrix RTX 5090 can draw up to 800W when both its 12V-2×6 and BTF GC-HPWR connectors are utilized with a compatible ASUS BTF motherboard.
How does the BTF connector work?
The BTF (Back-To-the-Future) connector is a proprietary ASUS power input that slots into a compatible ASUS BTF motherboard, allowing the graphics card to draw power directly from the motherboard’s rear, enabling cleaner cable management and additional power delivery in parallel with the standard 12V-2×6 cable.
Is the 800W power delivery safe?
ASUS has implemented multiple safety features, including a thick 3oz copper PCB, extensive sensor arrays, and the Power Detector+ utility (via GPU Tweak III) which monitors power connection integrity and alerts users to any abnormalities. The dual-input design also helps distribute the power load.
What kind of cooling does it use?
The ROG Matrix RTX 5090 features an advanced air-cooling system that includes a full-copper vapor chamber, liquid metal thermal interface material (TIM) on the GPU die, a 3oz copper PCB, and an innovative four-fan setup (three front, one rear exhaust).
How many units are available?
Production of the ROG Matrix RTX 5090 30th Anniversary Limited Edition is strictly capped at 1,000 units worldwide.
When will it be available and what will it cost?
ASUS has not yet disclosed official pricing or specific retail availability. It was unveiled at Gamescom 2025, and while pricing is unannounced, it is expected to be significantly higher than a standard RTX 5090.
What is the Memory Defroster feature?
The Memory Defroster is a jumper-activated feature designed for extreme liquid nitrogen (LN2) overclocking. It warms the memory chips to prevent cold-related errors and maintain VRAM stability when cooled below freezing temperatures.
The Ultimate Statement in GPU Engineering
The ASUS ROG Matrix RTX 5090 30th Anniversary Limited Edition is not merely a graphics card; it’s a testament to three decades of ASUS’s relentless pursuit of performance and innovation. With its groundbreaking 800W power delivery, meticulously engineered air cooling, and a suite of features tailored for the most extreme enthusiasts, it stands as a true halo product. While its exclusivity and anticipated high price tag will place it out of reach for most, its existence pushes the boundaries of what’s possible in GPU design, setting a new benchmark for power, cooling, and intelligent engineering. For those seeking the absolute pinnacle of performance and a piece of gaming history, the ROG Matrix RTX 5090 represents an unparalleled achievement.
